Description

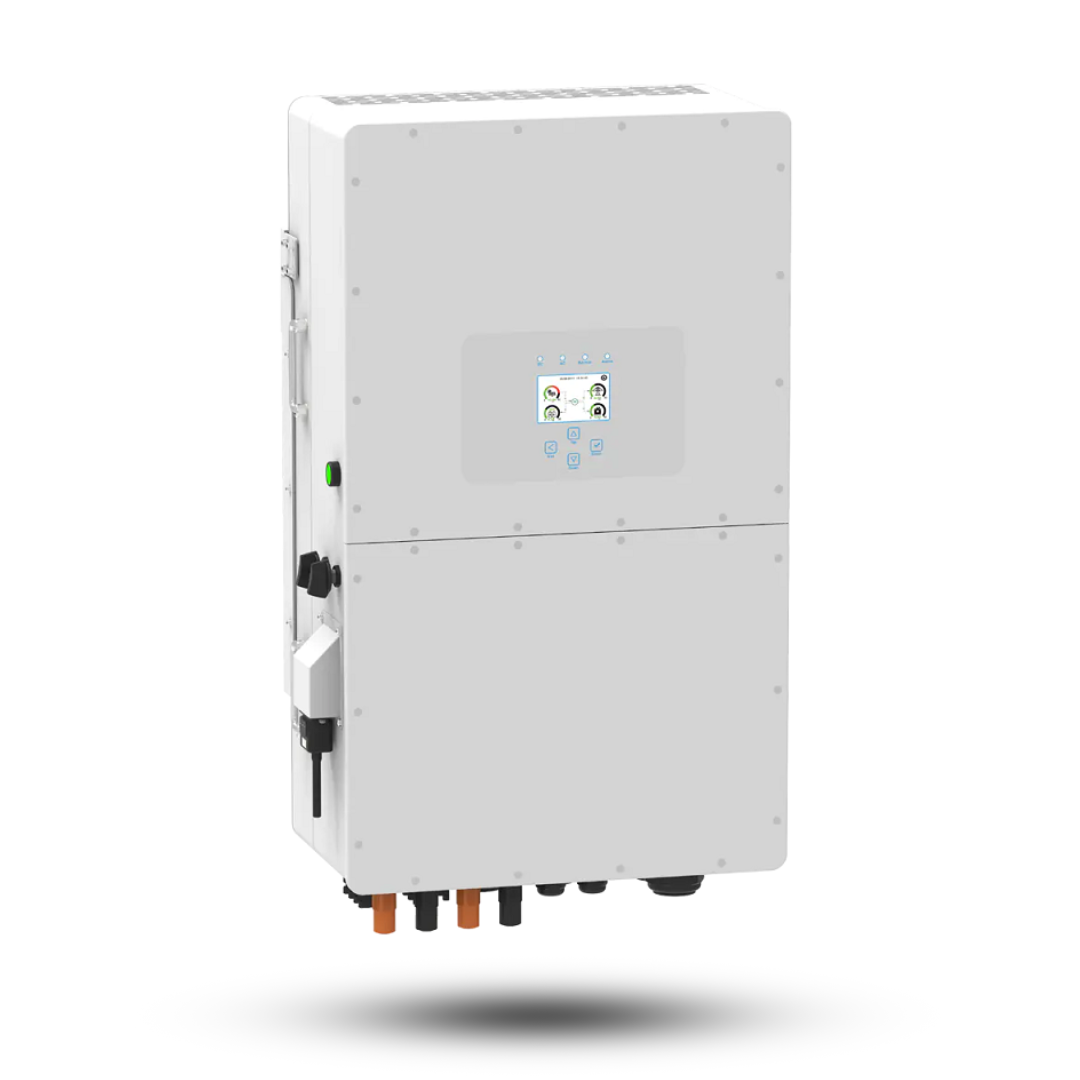

Deye 30kW Three-Phase Hybrid Inverter (SUN-30K-SG01HP3-EU-BM3)

Product Overview

The Deye 30kW Hybrid Inverter is a robust, high-performance solution designed for large estates, commercial buildings, and industrial facilities. Operating on a Three-Phase system, it is engineered to handle massive solar arrays and large-scale energy storage. Unlike standard residential models, this unit utilizes High-Voltage (HV) battery architecture (160V–800V), which reduces energy losses during conversion and allows for smaller cable diameters. With three independent MPPT trackers, it provides unparalleled flexibility for complex roof layouts, ensuring maximum energy harvest even in challenging conditions.

Key Features

• High-Voltage Battery Efficiency: Compatible with HV lithium batteries (e.g., Deye BOS-G or Pylontech Force), operating at up to 800V to minimize thermal losses and maximize round-trip efficiency.

• Triple MPPT Trackers: Features 3 MPPTs with multiple strings per tracker, allowing for different panel orientations and types to be combined into one seamless system.

• 100% Unbalanced Phase Support: Uniquely capable of delivering unbalanced power across the three phases. If one phase requires more power than the others, the inverter can intelligently redirect its output to meet that specific demand (up to 50% of rated power per phase).

• Industrial Scalability: Supports parallel connection of up to 10 units, allowing you to scale a facility’s power capacity up to 300kW in both on-grid and off-grid modes.

• Smart Load & Peak Shaving: Includes a smart load port for controlling heavy non-essential machinery and a “Grid Peak Shaving” function to reduce high-demand charges from the utility provider.

• DC/AC Coupling: Perfect for retrofitting; it can be AC-coupled to existing grid-tie solar systems to add battery storage without replacing the original equipment.

• IP65 Industrial Protection: Built to last in demanding environments with a fully sealed, weather-rated housing suitable for outdoor installation.

Technical Specifications

• Model: SUN-30K-SG01HP3-EU-BM3

• Rated AC Output: 30,000W (30kW)

• Max. AC Output Power: 33,000W

• Battery Type: High-Voltage Lithium-ion (HV)

• Battery Voltage Range: 160V – 800V

• Max. Charging/Discharging Current: 50A + 50A

• Max. DC Input Power: 39,000W

• MPPT Voltage Range: 150V – 850V

• Peak Power (Off-Grid): 45,000W (for 10 seconds)

• Dimensions: 560.5 x 837 x 319 mm

• Weight: ~80 kg

• Warranty: 5-Year Standard (Optional 10-year extension)
