Description

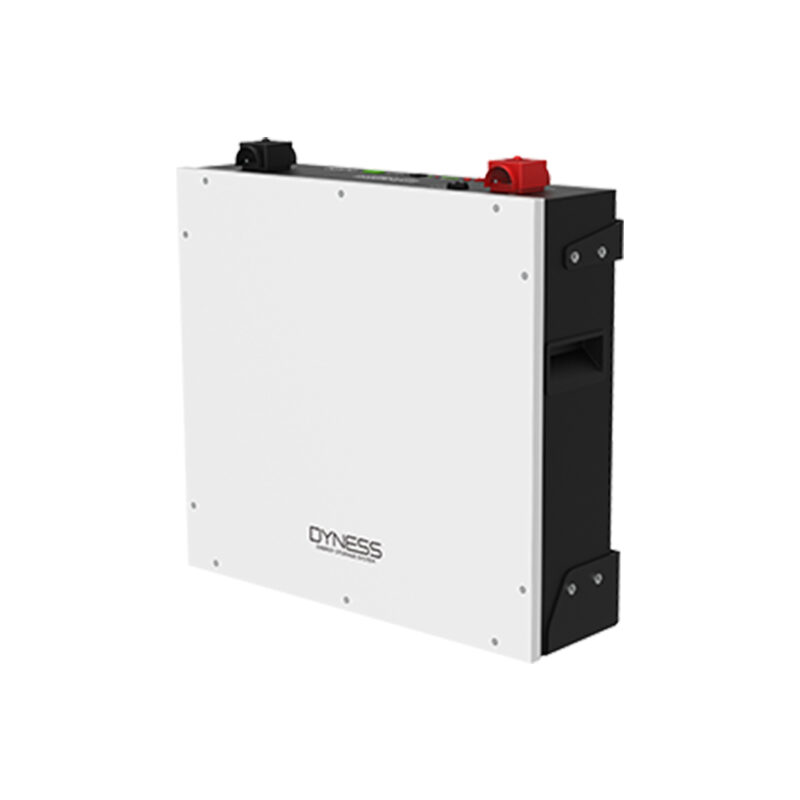

Dyness 5.12kWh Low-Voltage Lithium Battery (DL5.0C)

Product Overview

The Dyness DL5.0C is a premium Lithium Iron Phosphate (LFP) battery module engineered for residential and small commercial energy storage. Available at Powernest Limited, this 48V (51.2V nominal) unit is widely recognized for its reliability and “economic design” that doesn’t compromise on performance. It is a perfect match for 48V hybrid inverters like the Deye series, offering a sleek, compact profile that can be wall-mounted or stacked to save valuable floor space while providing high-density energy backup.

Key Features

• Extended Service Life: Designed for longevity, providing over 6,000 cycles at 80% to 90% Depth of Discharge (DoD). This translates to 10+ years of reliable daily cycling in a typical solar setup.

• 1C Discharge Capability: Unlike many standard solar batteries, the DL5.0C supports a 1C discharge rate (100A continuous), meaning a single module can output up to 5kW of power to handle heavy appliance surges.

• Intelligent Battery Management (BMS): The integrated BMS monitors each individual cell for voltage, current, and temperature, ensuring balanced charging and protection against over-voltage or short circuits.

• Massive Parallel Scalability: The system is built to grow with your needs; you can parallel up to 50 modules, allowing for a total storage capacity of 256kWh for large estates or commercial facilities.

• Wide Inverter Compatibility: Seamlessly communicates with industry-leading brands including Victron, Deye, GoodWe, Luxpower, and Solis, ensuring “plug-and-play” installation.

• Smart Monitoring (Optional): Supports remote firmware upgrades and real-time app-based monitoring, allowing you to track your battery health and energy levels from your smartphone.

Technical Specifications

• Model: DL5.0C (Low Voltage)

• Nominal Energy: 5.12 kWh

• Nominal Capacity: 100 Ah

• Nominal Voltage: 51.2 V

• Charge/Discharge Current: 50A (Recommended), 100A (Max Continuous)

• Peak Discharge Current: 110A (for 15 seconds)

• Cycle Life: ≥6,000 Cycles (@ 25°C, 80% DoD)

• Ingress Protection: IP20

• Dimensions: 558 x 545 x 150 mm

• Net Weight: 54 kg

• Certifications: UN38.3, CE-EMC, IEC62619, CEI-021

• Warranty: 10-Year Standard Warranty
