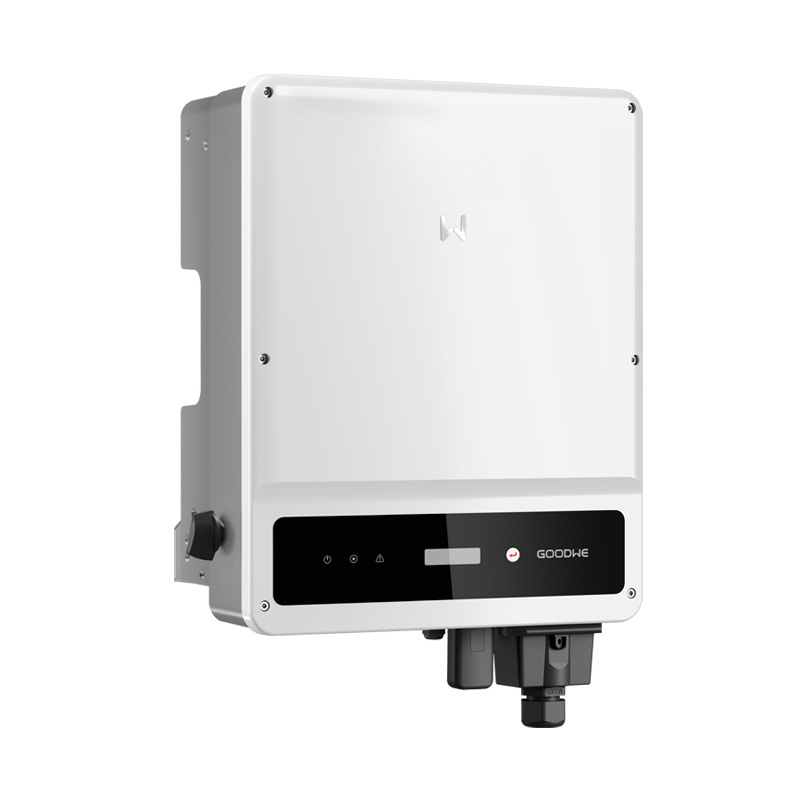

GoodWe 10kW Three-Phase On-Grid Inverter (GW10K-SDT-20)

Product Overview

The GoodWe 10kW SDT G2 is a high-efficiency, three-phase string inverter specifically engineered for residential and small commercial on-grid solar systems. Available at Powernest Limited, this second-generation (G2) model is significantly more compact and lightweight than its predecessors while delivering superior power density. Designed for stability and maximum yield, it features a fanless cooling system for whisper-quiet operation, making it the perfect choice for high-end home installations where noise and aesthetics are a priority.

Key Features

• Dual MPPT Technology: Equipped with two independent Maximum Power Point Trackers, allowing for optimal energy harvest from solar arrays installed on different roof orientations (e.g., East-West).

• High-Power Module Compatibility: Supports a high DC input current (up to 15A/16A per MPPT), making it fully compatible with the latest generation of ultra-high-power 550W+ bifacial modules.

• Superior Efficiency: Boasts a peak efficiency of 98.3%, ensuring that more of the energy captured by your panels is converted into usable electricity for your facility.

• Smart Shadow Scan: Features integrated software that periodically scans the array to find the optimal power point, minimizing the impact of partial shading from trees or chimneys.

• Advanced Safety Suite: Includes optional Arc-Fault Circuit Interrupter (AFCI) and Type II Surge Protection (SPD) on both AC and DC sides to protect your investment from electrical hazards.

• Quiet & Reliable: The fanless, natural convection cooling design eliminates moving parts, reducing maintenance needs and ensuring the unit operates at below 25dB.

Technical Specifications

• Model: GW10K-SDT-20 (SDT G2 Plus+ Series)

• Nominal AC Output Power: 10,000W (10kW)

• Max. AC Apparent Power: 11,000VA (110% Overloading capability)

• Max. DC Input Power: 15,000W (Supports 150% DC oversizing)

• Max. DC Input Voltage: 1100V

• MPPT Operating Voltage Range: 140V – 950V

• Number of MPPTs: 2 (1 string per MPPT)

• Ingress Protection: IP65 (Suitable for outdoor installation)

• Communication: Wi-Fi (standard), RS485, or LAN (optional)

• Warranty: 5-Year Standard Warranty (Extendable)
